7 Misleading Data Visualization Techniques - And How to Spot Them

Data visualizations are powerful. A well-designed chart can turn hours of analysis into a single, memorable insight. But the same visual tools that clarify data can just as easily distort it — whether by accident or by design.

At Squery Solutions, we work with data dashboards and analytics every day. We’ve seen all of these mistakes in the wild, and we created this guide to help analysts, decision-makers, and business leaders recognize when a chart is telling the truth — and when it isn’t.

1. Bad Axis Scaling

Axis scaling is one of the most overlooked — and most abused — elements of chart design. A poorly chosen scale can make a negligible difference between data points look dramatic, or hide a genuinely significant gap by burying it in a vast range.

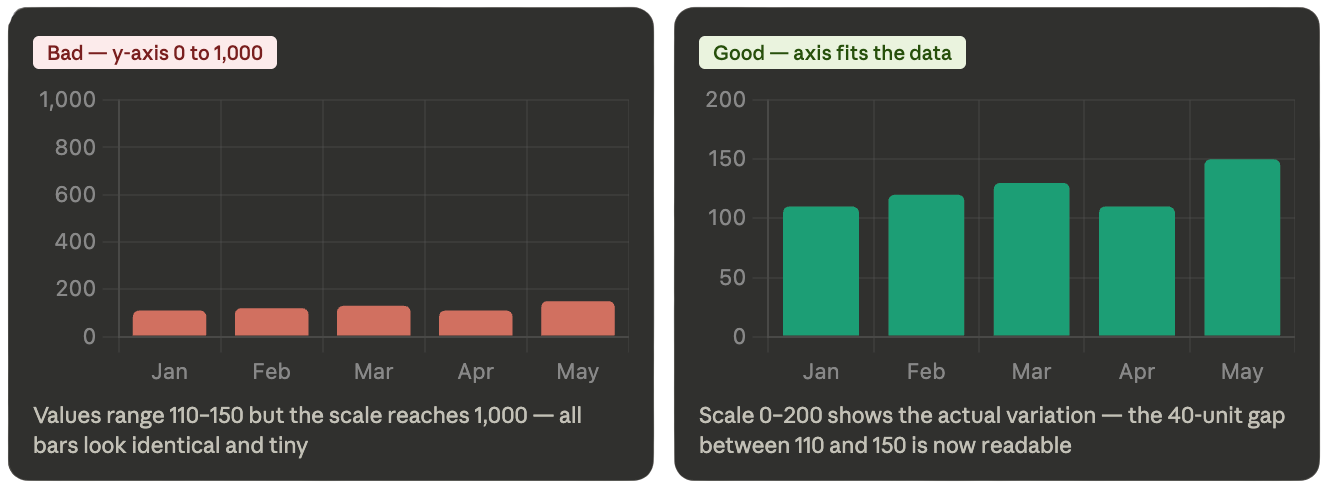

The classic example: a bar chart where values range from 110 to 150, but the y-axis runs from 0 to 1,000. Every bar looks nearly identical, even though a 40-unit gap may be highly meaningful in context.

Why it’s misleading: A stretched scale hides real differences. A compressed scale exaggerates them. Either way, the visual impression contradicts the data reality.

When it’s justified: When comparing metrics with fundamentally different magnitudes — such as revenue in millions alongside a percentage margin — adjusting scale is sometimes necessary. In those cases, use synchronized dual axes and label them clearly.

What to watch for: Always check the axis range before drawing conclusions from a bar chart. If the numbers in the bars are all close together but the bars look wildly different in height, the scale is likely misleading you.

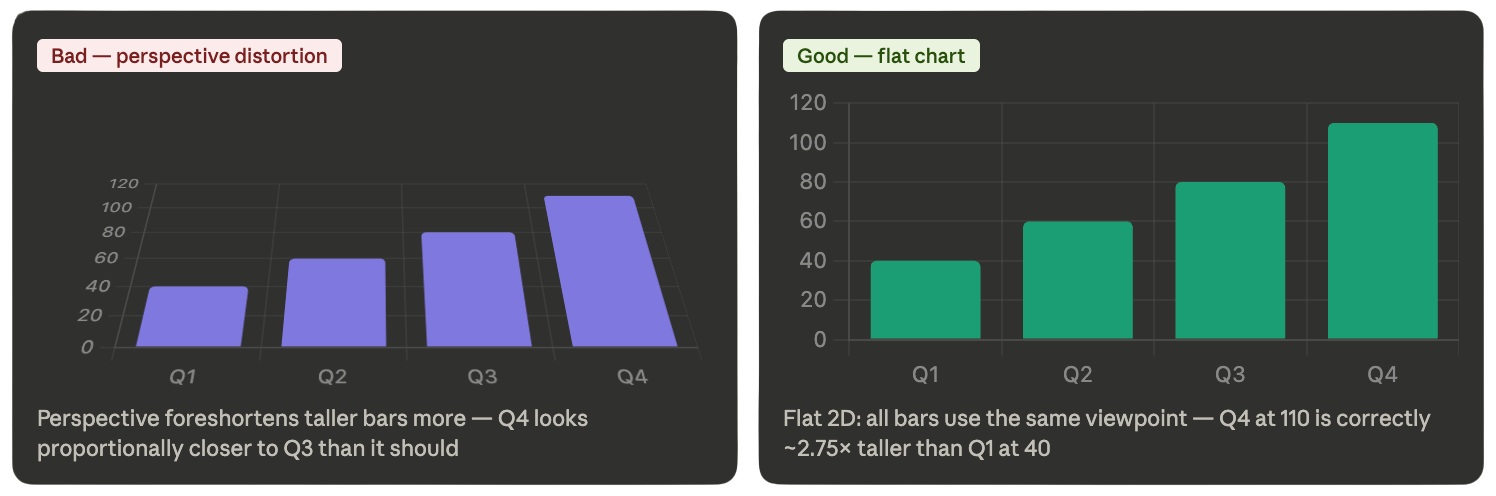

2. 3D Charts

Three-dimensional charts are visually striking. They’re also one of the most reliable ways to make accurate data interpretation harder.

The core problem is perspective distortion. In a 3D bar or pie chart, elements in the foreground appear larger than those in the background — regardless of their actual values. Lighting and shading further manipulate where the eye is drawn. Labels and data points can become obscured behind other chart elements entirely.

Why it’s misleading: Our brains can’t accurately compare heights, areas, or angles when they’re rendered in three dimensions and viewed from an angle. 3D charts exploit this limitation to exaggerate small changes, distract from weak results, or hide values in harder-to-see areas.

When it’s acceptable: Almost never for analytical purposes. The only legitimate use case is purely artistic or conceptual content — infographics or posters where data precision isn’t the goal.

The rule: In data visualization, design should serve clarity. If a visual effect makes the chart harder to read accurately, remove it.

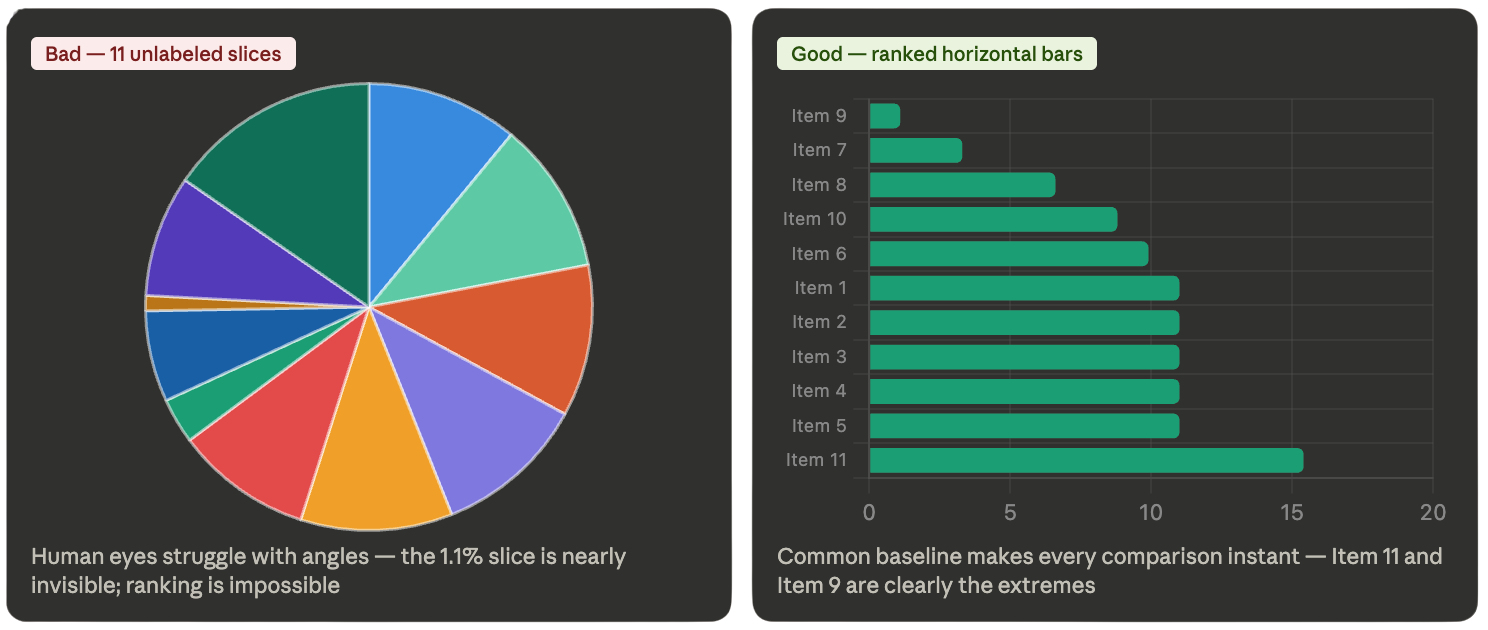

3. Pie Charts with Too Many Values

Pie and donut charts have a specific weakness: humans are poor at comparing angles and arc lengths. We can judge that one slice is clearly bigger than another, but we struggle to rank five similarly-sized slices in order.

When a pie chart contains more than four or five categories, this weakness becomes critical. Labels overlap, small-but-meaningful values become nearly invisible slivers, and the overall impression is visual noise rather than insight.

Why it’s misleading: Unlike bar charts, pie slices don’t share a common baseline, making comparisons inherently difficult. Crowded charts can make all values seem roughly equal even when they’re not, or bury a negative data point in a sea of similar-colored segments.

When pie charts work: Simple comparisons between two or three categories, situations with a clear dominant value, or cases where you’re showing general proportions rather than precise figures. Even then, a horizontal bar chart is usually a better choice.

The fix: Replace overcrowded pie charts with ranked horizontal bar charts. Every category gets its own baseline, comparisons are immediate, and no value disappears.

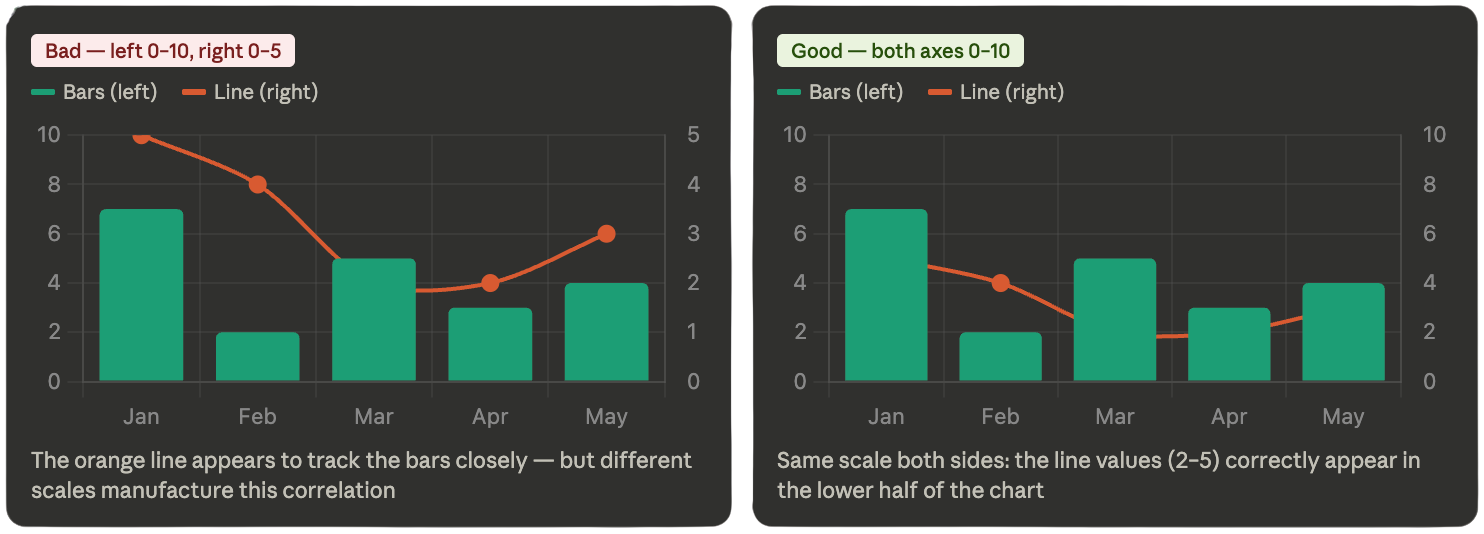

4. Unsynchronized Double Axes

Dual y-axis charts — where a bar chart and a line chart share the same plot area but use different vertical scales — are a staple of financial and marketing reporting. Used carefully, they’re a legitimate tool. Used carelessly or deliberately, they’re one of the most effective ways to manufacture a false narrative.

The problem is that our brains naturally look for patterns. When two trends share the same chart space, we instinctively assume they’re scaled the same way and that their visual relationship is meaningful. Unsynchronized axes exploit this instinct.

A line chart scaled 0–5 and a bar chart scaled 0–10 on the same plot can be made to look perfectly correlated — or perfectly opposed — simply by adjusting where each axis starts and ends, regardless of what the data actually shows.

Why it’s misleading: It can create the appearance of correlation between unrelated metrics, make minor changes look dramatic, and hide genuinely negative trends by shrinking the scale that shows them.

When it’s acceptable: When comparing different units of measurement (e.g., absolute revenue vs. percentage growth), dual axes may be necessary — but only if both axes are clearly labeled, their ranges are appropriate, and the chart is not intended to imply a causal relationship.

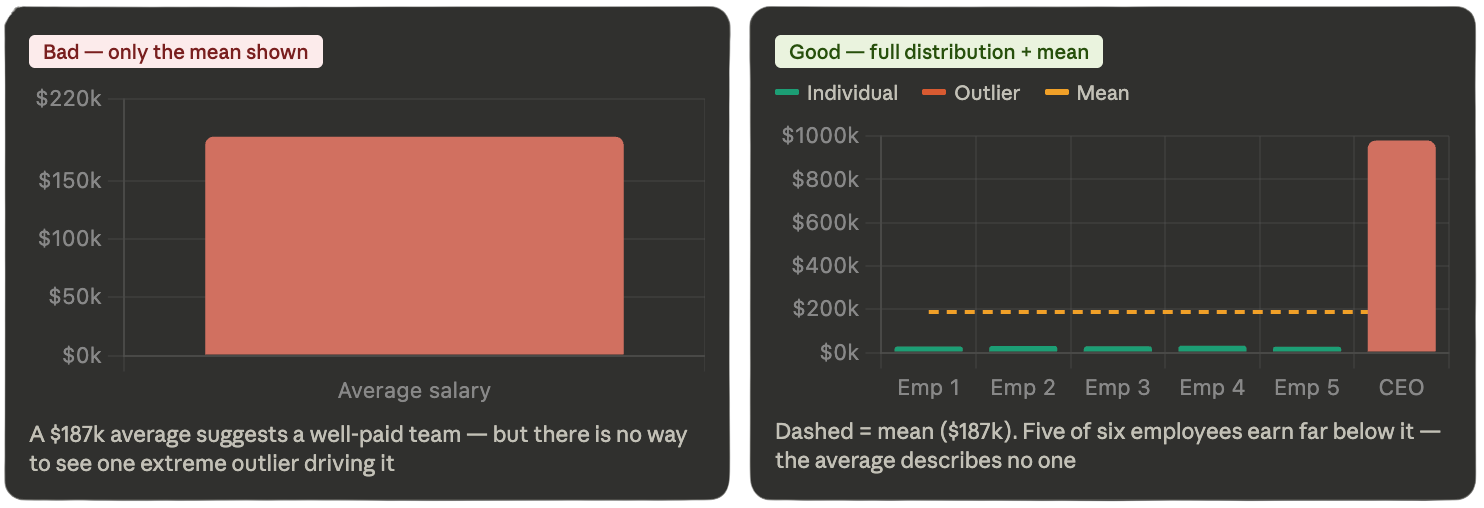

5. The Average Trap

The arithmetic mean is the most commonly reported statistic in business dashboards, press releases, and reports. It’s also one of the most frequently misleading.

Averages collapse the entire shape of a dataset into a single number. That number can be accurate as a calculation while being deeply unrepresentative of reality. If five employees earn €30,000 and one earns €1,000,000, the average salary is over €180,000 — a figure that describes no one’s actual experience.

Why it’s misleading: Averages hide extremes, ignore distribution, and mask meaningful differences between segments. Two datasets can have identical averages while looking completely different when visualized in full.

How to spot it: Be skeptical of any chart or KPI that shows only an average with no accompanying distribution information. Ask for the median, the range, and where possible a histogram or box plot.

When averages are valid: In symmetrical, outlier-free distributions, or when comparing similar groups with similar data shapes, averages can be meaningful — especially as a starting point, paired with additionalstatistics like median and standard deviation.

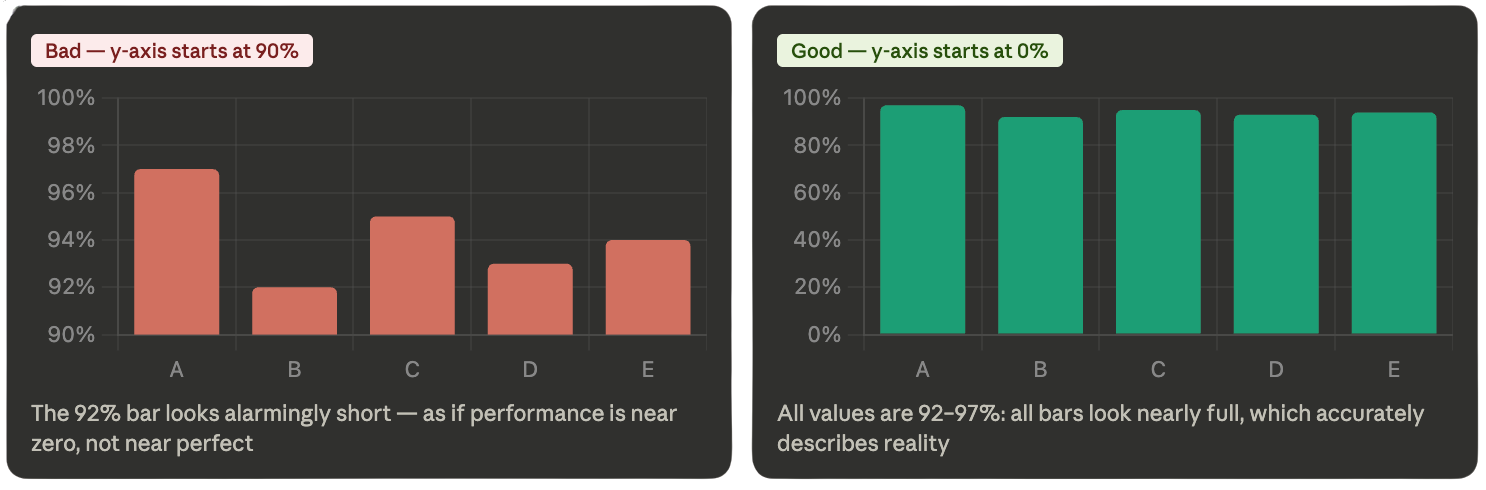

6. Axes That Don't Start at Zero

This is one of the most common and most effective visual manipulation techniques in business reporting. When a y-axis starts at, say, 90% instead of 0%, bars that differ by only 5 percentage points can look dramatically different in height. The same data shown with a zero baseline would reveal the differences to be minor.

This technique exploits a fundamental feature of human visual perception: we interpret the physical size of chart elements as proportional to the values they represent. A truncated axis breaks this assumption without alerting the viewer.

Why it’s misleading: Viewers trust what they see more than what they read. A bar that takes up 80% of the chart area feels like it represents a large value, even if the axis range reveals it only spans a few percentage points.

When a non-zero baseline is justified: In line charts showing subtle trends over time — stock prices, physiological measurements, sensor data — starting at zero would flatten the chart to the point of uselessness. The key is transparency: label the axis clearly and ensure the viewer understands the range.

The rule of thumb: Bar charts should almost always start at zero. Line charts have more flexibility, but the axis range must always be legible.

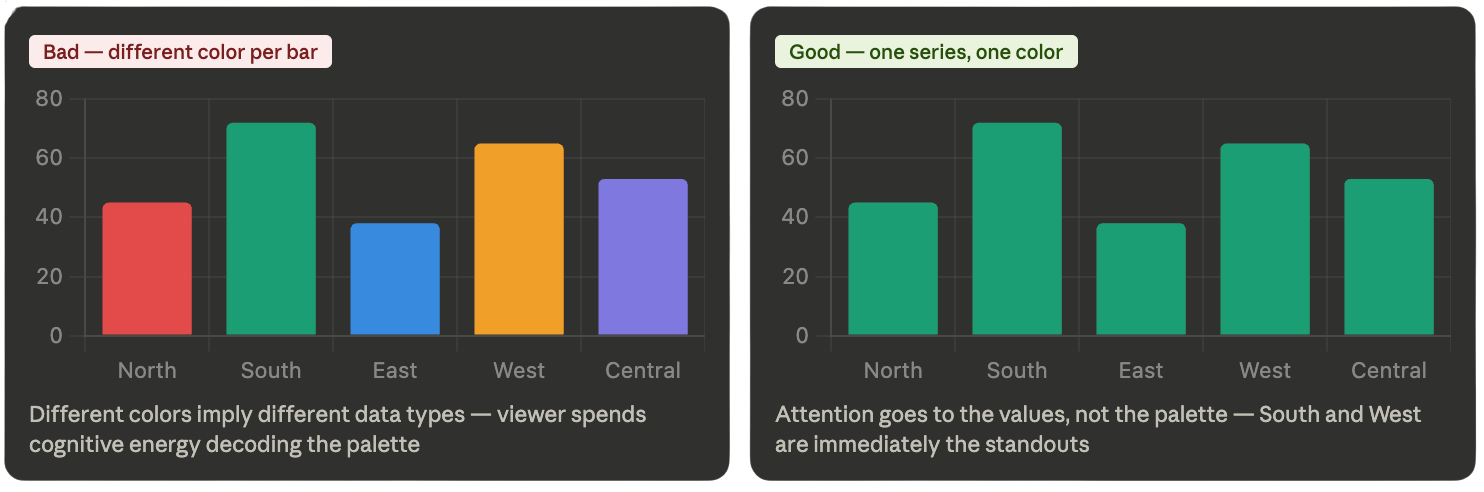

7. Inconsistent or Misleading Color Choices

Color is not decorative in data visualization — it’s communicative. We carry strong, culturally embedded associations: red means danger, loss, or urgency; green means growth, success, or safety. These associations are processed before the viewer consciously reads a single label.

Breaking these conventions — even unintentionally — forces viewers to mentally decode every element of a chart rather than reading it fluently. At scale, across a multi-page dashboard or report, inconsistent coloring significantly increases cognitive load and the risk of misinterpretation.

Why it’s misleading: Using red for positive values and green for negative ones can cause viewers to draw exactly the wrong conclusion at first glance. Using different colors for the same category across different charts on the same dashboard breaks visual continuity. Overloading a chart with too many colors without a clear legend makes key insights harder to identify.

When unconventional coloring is acceptable: Brand consistency sometimes requires specific colors, but clarity should take priority. Deliberate color deviation can highlight a specific data point — but only when used sparingly and with clear intent. Accessibility adjustments for colorblind users are always a valid reason to deviate from defaults.

The Bigger Picture

Each of these techniques can occur by accident or by design. An analyst who doesn’t think carefully about axis ranges can inadvertently mislead their stakeholders just as effectively as one who sets out to manipulate them.

The best defense is visual literacy: knowing what to look for before drawing conclusions from a chart. Check the axis range. Question standalone averages. Be suspicious of 3D effects and dual axes. Ask who made the chart and what conclusion they were hoping you’d draw.
